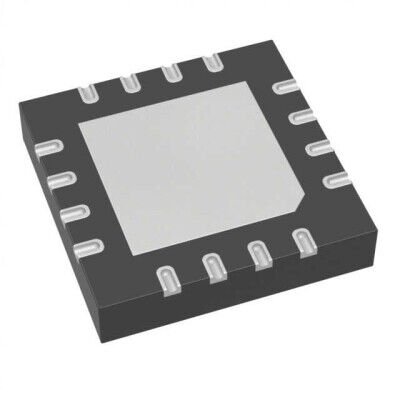

AP66300FVBW-13 16-UQFN Exposed Pad Entegre Devre
126,77 TL
13,26 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AP66300FVBW-13
Stok Adedi
0
Fiyat
2,40 USD + KDV
AP66300FVBW-13 16-UQFN Exposed Pad kılıfta üretilmiştir. Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 16-UQFN Exposed Pad
| Ürün Kodu | AP66300FVBW-13 |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.8V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 50V |
| Current - Output | 3A |
| Frequency - Switching | 300kHz ~ 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 16-UQFN Exposed Pad |
| Supplier Device Package | U-QFN4040-16/SWP (Type UXB) |
AP66300FVBW-13 Datasheet dosyasına ulaşmak için tıklayınız.
