AP22966DC8-7 V-DFN3020-14 Entegre Devre
27,80 TL
2,91 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AP22966DC8-7
Stok Adedi
0
Fiyat
0,53 USD + KDV

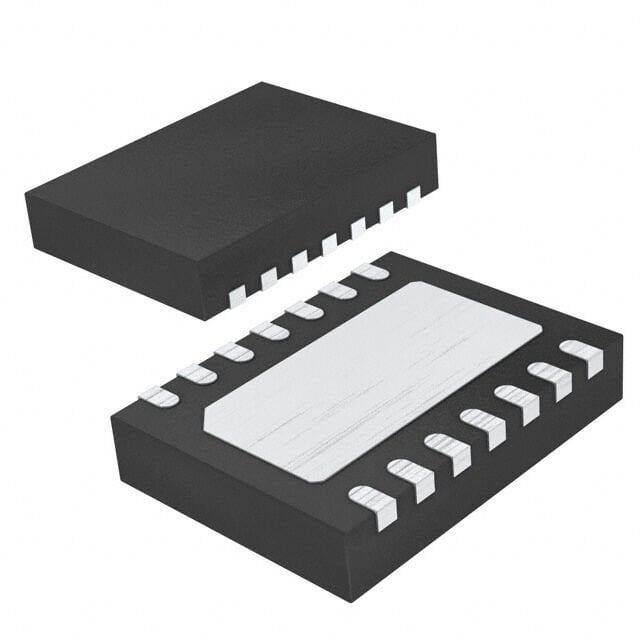

AP22966DC8-7 V-DFN3020-14 kılıfta üretilmiştir. IC PWR SWITCH N-CHAN 1:1 14VDFN
| Ürün Kodu | AP22966DC8-7 |
| Current - Output (Max) | 6A |
| Fault Protection | - |
| Features | Load Discharge, Slew Rate Controlled |
| Input Type | - |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 14-WFDFN Exposed Pad |
| Part Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 17mOhm |
| Supplier Device Package | V-DFN3020-14 |
| Switch Type | General Purpose |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
AP22966DC8-7 Datasheet dosyasına ulaşmak için tıklayınız.
