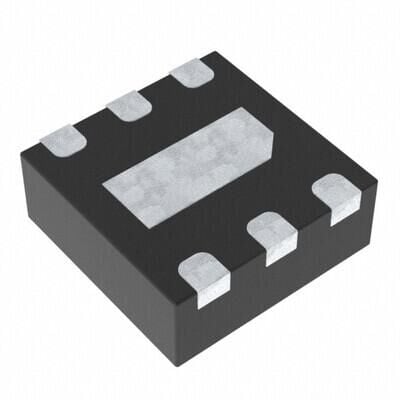

AP22652FDZ-7 W-DFN2020-6 (Type A1) Entegre Devre
29,69 TL
3,11 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
AP22652FDZ-7
Stok Adedi
0
Fiyat
0,56 USD + KDV
AP22652FDZ-7 W-DFN2020-6 (Type A1) kılıfta üretilmiştir. LOAD SWITCH,W-DFN2020-6,T&R,3K
| Ürün Kodu | AP22652FDZ-7 |
| Current - Output (Max) | 2.1A |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO |
| Features | Load Discharge, Slew Rate Controlled, Status Flag |
| Input Type | Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Package / Case | 6-WDFN Exposed Pad |
| Part Status | Active |
| Ratio - Input:Output | 1:1 |
| Rds On (Typ) | 65mOhm |
| Supplier Device Package | W-DFN2020-6 (Type A1) |
| Switch Type | General Purpose |
| Voltage - Load | 3V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
AP22652FDZ-7 Datasheet dosyasına ulaşmak için tıklayınız.
