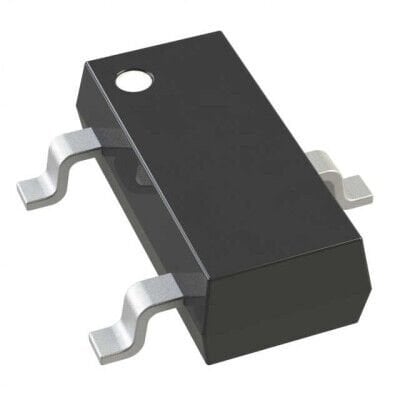

AP2210N-4.0TRG1 SOT-23-3 Entegre Devre
AP2210N-4.0TRG1
- Üretici
- Diodes Incorporated
- Kategori
- Kılıf / Paket
- —
AP2210N-4.0TRG1 SOT-23-3 Entegre Devre Hakkında
AP2210N-4.0TRG1 SOT-23-3 kılıfta üretilmiştir. IC REG LINEAR 4V 300MA SOT23-3
| Ürün Kodu | AP2210N-4.0TRG1 |
| Control Features | - |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 180 µA |
| Current - Supply (Max) | 15 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | 75dB (100Hz) |
| Supplier Device Package | SOT-23-3 |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 4V |
| Voltage Dropout (Max) | 0.5V @ 300mA |
AP2210N-4.0TRG1 Datasheet dosyasına ulaşmak için tıklayınız.
