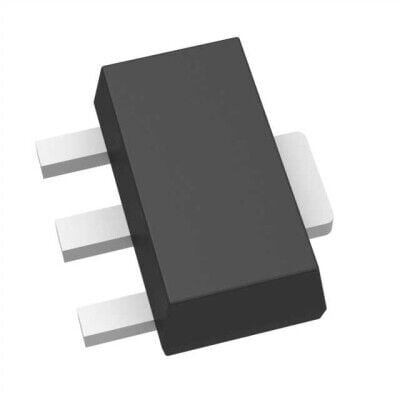

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
AP2205-50Y-13 SOT-89-3 Entegre Devre
AP2205-50Y-13
- Üretici
- Diodes Incorporated
- Kategori
- Kılıf / Paket
- —
AP2205-50Y-13 SOT-89-3 Entegre Devre Hakkında
AP2205-50Y-13 SOT-89-3 kılıfta üretilmiştir. IC REG LINEAR 5V 250MA SOT89-3
| Ürün Kodu | AP2205-50Y-13 |
| Control Features | - |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-243AA |
| Part Status | Active |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| PSRR | 60dB (100Hz ~ 1kHz) |
| Supplier Device Package | SOT-89-3 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage Dropout (Max) | 0.5V @ 150mA |
AP2205-50Y-13 Datasheet dosyasına ulaşmak için tıklayınız.
