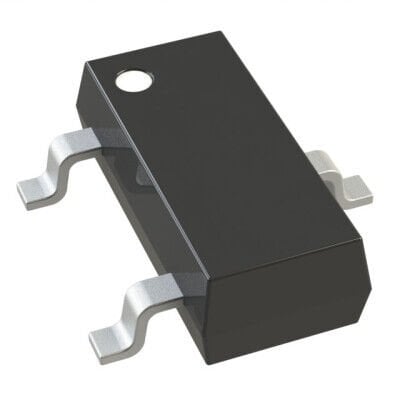

AP2120N-2.5TRG1 SOT-23-3 Entegre Devre
AP2120N-2.5TRG1
- Üretici
- Diodes Incorporated
- Kategori
- Kılıf / Paket
- —
AP2120N-2.5TRG1 SOT-23-3 Entegre Devre Hakkında
AP2120N-2.5TRG1 SOT-23-3 kılıfta üretilmiştir. IC REG LINEAR 2.5V 150MA SOT23
| Ürün Kodu | AP2120N-2.5TRG1 |
| Control Features | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Part Status | Active |
| Protection Features | Over Current |
| PSRR | 65dB (1kHz) |
| Supplier Device Package | SOT-23-3 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage Dropout (Max) | 0.5V @ 150mA |
AP2120N-2.5TRG1 Datasheet dosyasına ulaşmak için tıklayınız.
