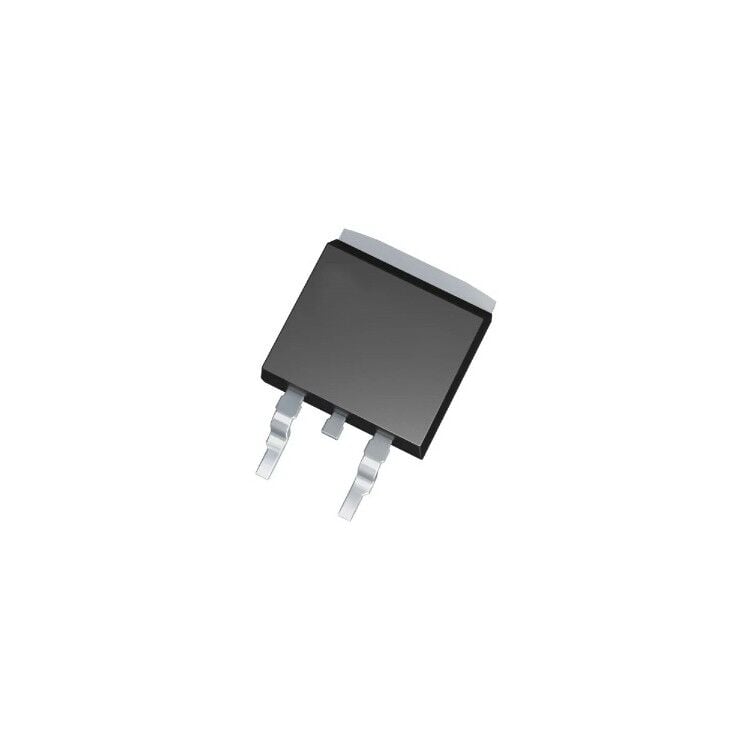

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
AOB15B65M1 (B15B65M1) 30A 650V TO-263 (D2PAK) IGBT Transistör
AOB15B65M1
- Üretici
- Magnachip Semiconductor
- Kategori
- Kılıf / Paket
- —
AOB15B65M1 (B15B65M1) 30A 650V TO-263 (D2PAK) IGBT Transistör Hakkında
AOB15B65M1 (B15B65M1) 30A 650V TO-263 (D2PAK) IGBT Transistör
| Kılıf | TO-263-3 D²Pak (2 Leads + Tab) TO-263AB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Çalışma Sıcaklığı | -55°C ~ 175°C (TJ) |
| Üretici Paket/Kılıf | TO-263 (D2Pak) |
| Input Type | Standard |
| Test Condition | 400V 15A 20Ohm 15V |
| Power - Max | 214 W |
| Reverse Recovery Time (trr) | 317 ns |
| Current - Collector (Ic) (Max) | 30 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 45 A |
| Gate Charge | 32 nC |
| IGBT Type | - |
| Switching Energy | 290µJ (on) 200µJ (off) |
| Td (on/off) @ 25°C | 13ns/116ns |
| Vce(on) (Max) @ Vge- Ic | 2.15V @ 15V 15A |
