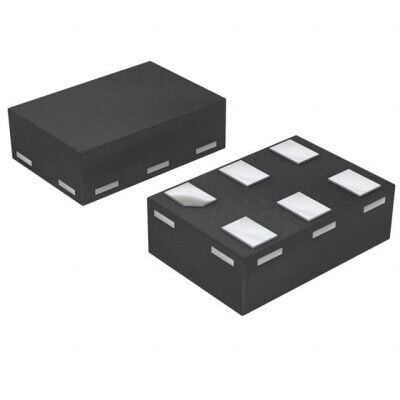

74LVC1G3157GM,115 6-XFDFN Entegre Devre Hakkında
74LVC1G3157GM,115 6-XFDFN kılıfta üretilmiştir. 1 Circuit IC Switch 2:1 10Ohm 6-XSON, SOT886 (1.45x1)
| Ürün Kodu | 74LVC1G3157GM,115 |
| Packaging | Cut Tape (CT) |
| Package / Case | 6-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7.5pC |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | - |
| Switch Time (Ton, Toff) (Max) | 4ns, 3.5ns |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Number of Circuits | 1 |
74LVC1G3157GM,115 Datasheet dosyasına ulaşmak için tıklayınız.
