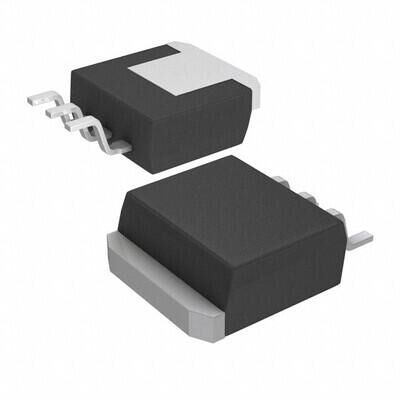

Representative package image · Images are representative; refer to the datasheet for complete specifications.
FJB102TM
Product Specifications
12 specifications
Current - Collector (Ic) (Max)
8 A
Current - Collector Cutoff (Max)
50µA
DC Current Gain (hFE) (Min) @ Ic, Vce
1000 @ 3A, 4V
Mounting Type
Surface Mount
Operating Temperature
150°C (TJ)
Package / Case
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Part Status
Active
Power - Max
80 W
Supplier Device Package
D²PAK (TO-263)
Transistor Type
NPN - Darlington
Vce Saturation (Max) @ Ib, Ic
2.5V @ 80mA, 8A
Voltage - Collector Emitter Breakdown (Max)
100 V
